Applications

Sewage
Effluent & Water Treatment
Sugar
Paper
Pulp & Cellulose
Ceramics & Refectories
Explosives
Chemicals & Fertilizers
Soap & Detergents
Cosmetics & Toiletries
Paint & Varnish
Petrochemicals & Refineries
Vegetable Oil

Fertilizers
Mining
Steel
Rubber
Starch
Construction
Man Made Fibres
Fisheries
Oil Exploration and Production
Pharmaceuticals
Cattle Feed
Electronics
Brewery and Distillery
Agriculture

Distribution Depots
Power
Dairies
Winery
Food And Beverages
Abattoir and Meat Processing
Plantations
Fruit Processing
Dye Stuff
Textiles

Progressive Cavity Pumping Principle

The pumping element comprises of a precision machined single external helix metallic rotor and a double internal helix elastomer stator. Due to special profile of Rotor and Stator, a sealing line is formed along the axis of the rotor, which is maintained at static or dynamic condition. As the rotor turns within the stator, these cavities progress from suction to discharge end of the pump carrying the fluid.

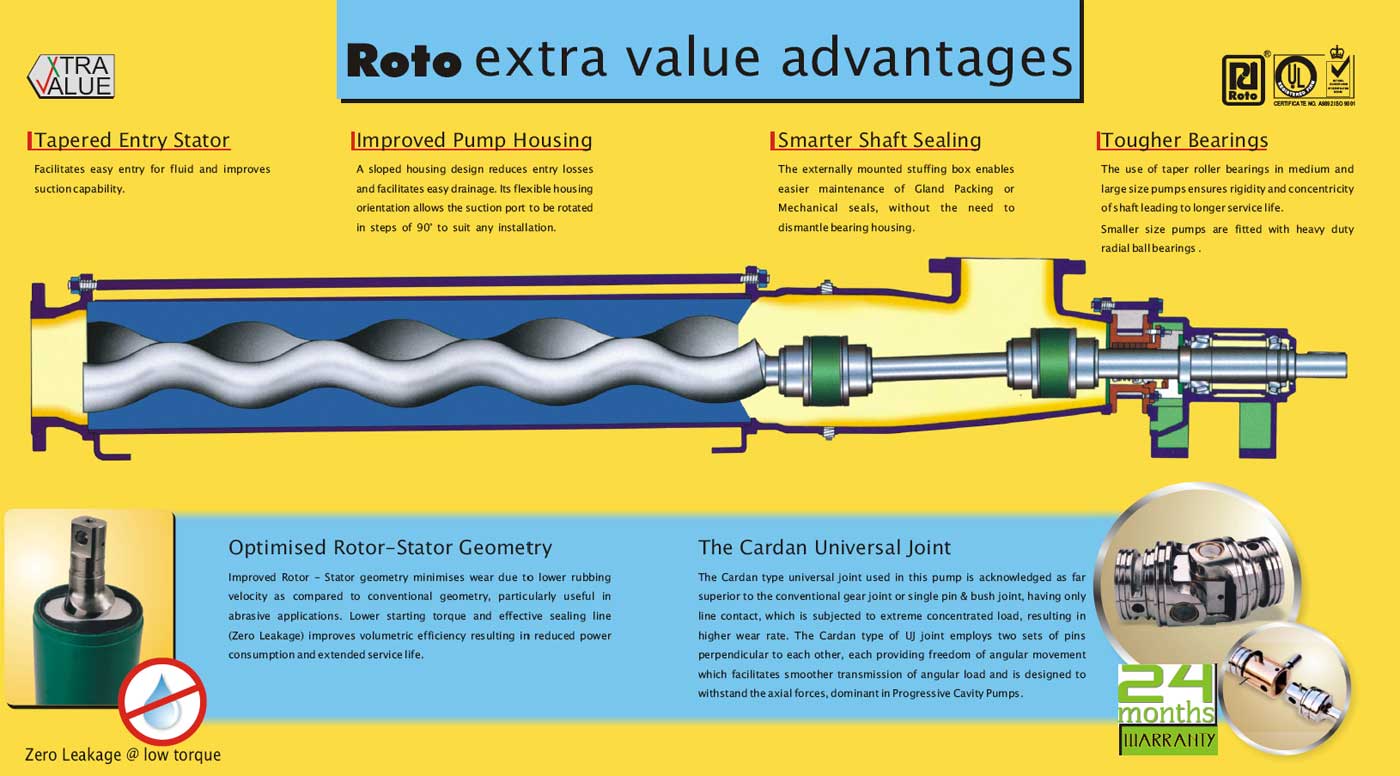

Distinctive design features & benefits

POSITIVE DISPLACEMENT	:	Head developed is independent of speed whereas capacity is proportionate to speed. Delivers Uniform, metered and Non Pulsating Flow.
SELF-PRIMING	:	Inherently self-priming, can work on snore and does not require foot valve
NON-CLOGGING	:	Handles solids in suspension or mixture containing high percentage of solids.
LOW NPSH REQUIREMENT	:	Suction lift capability up to 9.5 mwc and effective even in high vacuum conditions.
LOW INTERNAL VELOCITY	:	Minimum degradation of shear sensitive media
REVERSIBLE	:	Provides flexibility in operation

Screw pumps

Small Capacity 'RD' Series Pumps
Viscosities: Upto 30,000 cst
Temp.: Upto 150 C / 302 F
Solid Handling Capability: Upto 7%

These Small Capacity Heavy Duty Pumps are designed for continuous or it tent dosing or transfer duties. These Pumps are available in Close Coupled & Bare shaft Configuration.

Medium to Large Capacity 'RM' Series Pumps
Viscosities: Upto 30,000 cst
Temp.: Upto 150 C / 302 F
Solid Handling Capability: Upto 7%

These Heavy Duty pumps are designed for continuous duties and are suitable to perform efficiently even for the most difficult fluid handling applications. These Pumps are available in Close Coupled & Bareshaft Configuration.

Extra Large Capacity 'RL' Series Pumps
Viscosities: Upto 15,000 cst
Temp.: Upto 150 C / 302 F
Solid Handling Capability: Upto 7%

These Heavy Duty cost effective pumps use the extended Rotor Stator Geometry and are ideal for the Sewage & Effluent treatment applications. These Pumps are available in Close Coupled & Bare shaft Configuration.

Widethroat 'WM' Series Pumps
Viscosities: Upto 125,000 cst
Temp.: Upto 150 C / 302 F
Solid Handling Capability: Upto 12%

Widethroat type inlet allows gravity flow of highly viscous (Plastico-viscous) material on to Augur-on-Coupling Rod which pushes the substance to the pumping element. Available in Close Coupled & Bare shaft Configuration.

Widethroat with Bridgebreaker 'KM' Series Pumps
Viscosities: Upto 300,000 cst
Temp.: Upto 150 C / 302 F
Solid Handling Capability: Upto 40%

Widethroat pumps with side paddle (bridgebreaker) arrangement are designed for handling extremely difficult media with very high solid content and non flowing properties.

Wine & Beverage 'DM' Series Pumps
Viscosities: Upto 5,000 cst
Temp.: Upto 150 C / 302 F
Solid Handling Capability: Upto 7%

These Heavy Duty pumps are specifically designed for Wine transfer applications and can also be used for other Food & Beverages applications. Standard connections include IDF, SMS & RJT.
